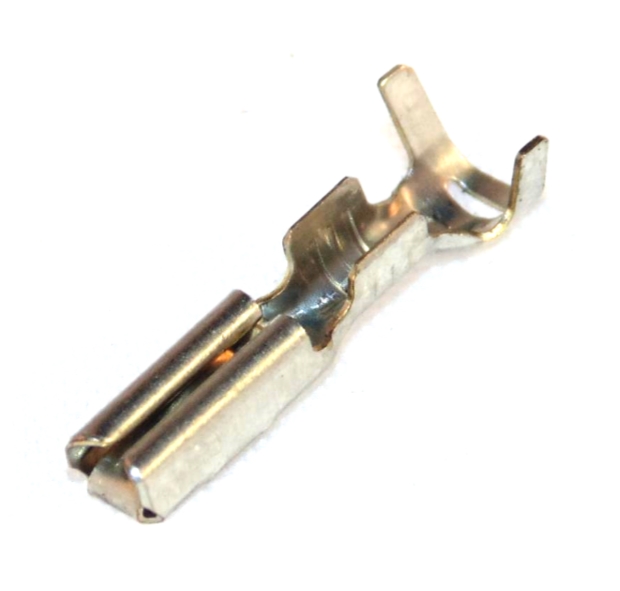

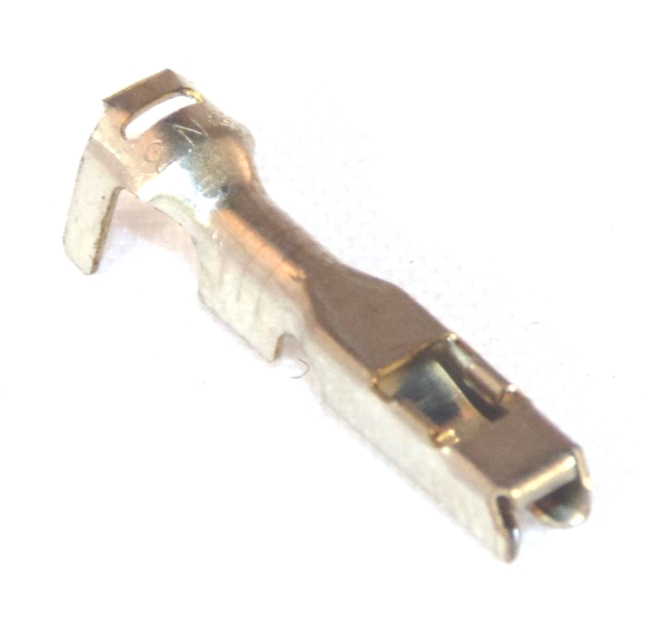

Sumitomo 090(2.3mm) Female Contact 0.3-1.25mm˛

Sumitomo 090(2.3mm) Female Contact 0.3-1.25mm˛
Zoom  Zoom
 Sumitomo 090(2.3mm) Female Contact 0.3-1.25mm˛Sumitomo 090(2.3mm) Female Contact 0.3-1.25mm˛
Our Price:  £0.18(Exc. 20% VAT)
–+

Model:  AC69-15000106-T
Part Number:  1500-0106
Brand:  Sumitomo
Gender:  Female
Contact Material:  Brass
Contact Plating:  Tin
Termination Method:  Crimp
Terminal Shape:  Flat
Tab Width:  2.3mm(090)

Availability:

12,382 in stock, immediate despatch
Wire Seal Sumitomo 090(2.3mm) Black 0.3-1.25mm˛Wire Seal Sumitomo 090(2.3mm) Black 0.3-1.25mm˛

Pricing
1-49

£0.18
50-99 £0.16
100-499 £0.14
500+

£0.13













Documents:  Drawing
