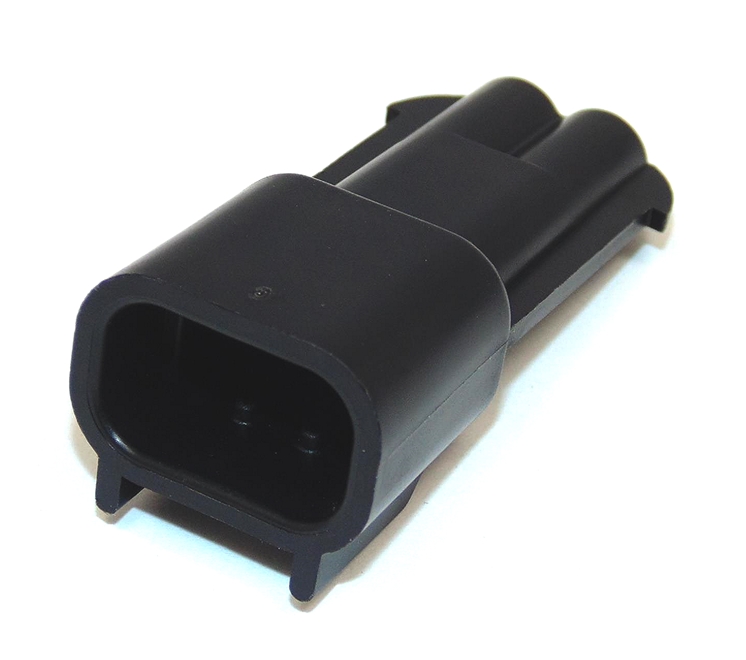

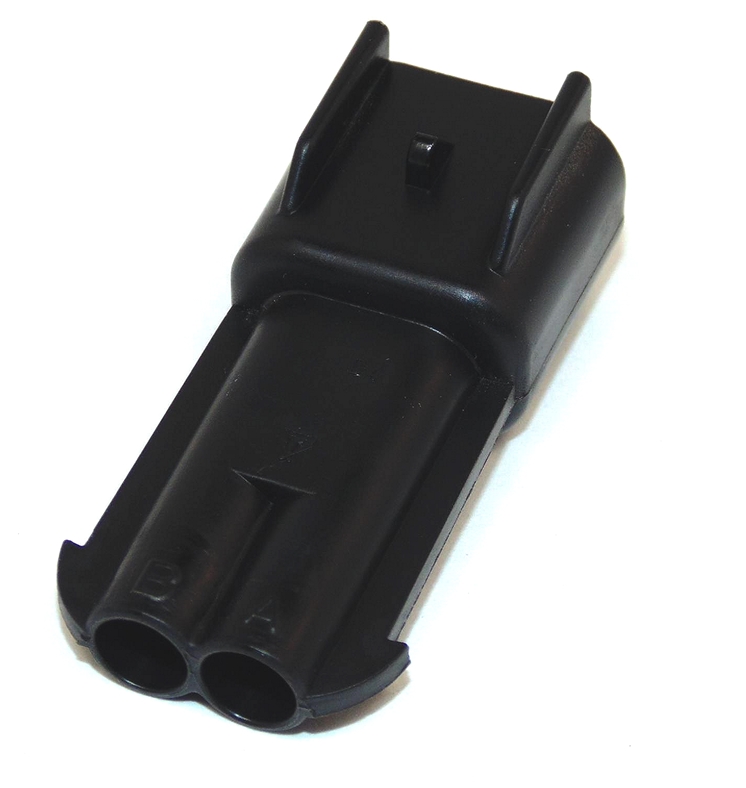

2Way Delphi Metri-Pack 280 Black HSG Male

2Way Delphi Metri-Pack 280 Black HSG Male
Zoom  Zoom
 2Way Delphi Metri-Pack 280 Black HSG Male2Way Delphi Metri-Pack 280 Black HSG Male
Our Price:  £0.75(Exc. 20% VAT)
+

Model:  FC33-AK6127-H
Part Number:  15300002-B
Brand:  Delphi
Product Range:  Metri-Pack 280
Number of Positions:  2
Number of Rows:  1
Gender (terminal):  Male
Colour:  Black
Sealed/Unsealed:  Unsealed
Longest Dimension (connector face):  24.3mm
Terminal Shape:  Flat
Housing Material:  Nylon
Current Rating:  30A
Maximum Operating Temperature:  125⁰C
Minimum Operating Temperature:  -40⁰C
Tab Width:  2.8mm

Availability:

8 in stock, immediate despatch

Pricing

1-9

£0.75

10-49 £0.60
50-99 £0.52
100+

£0.37













Documents:  Drawing


.
