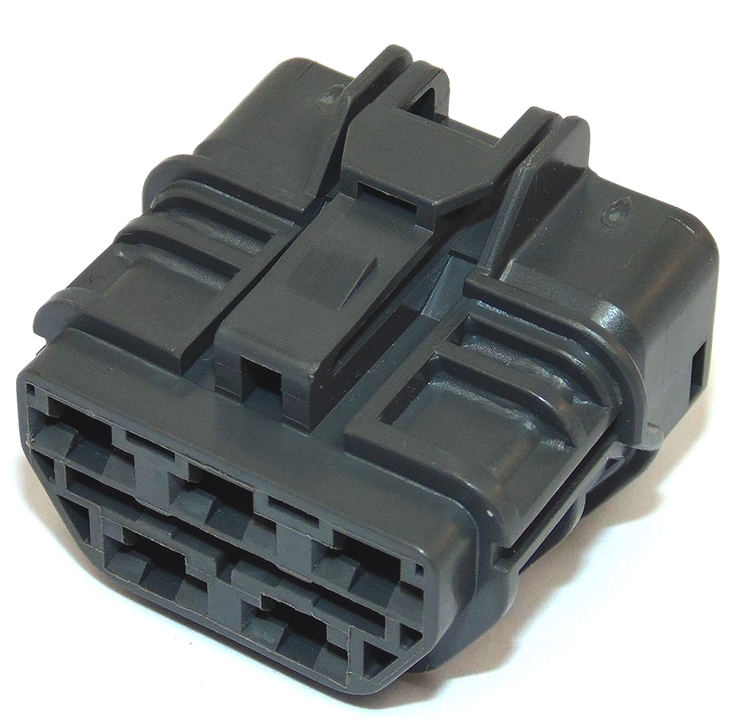

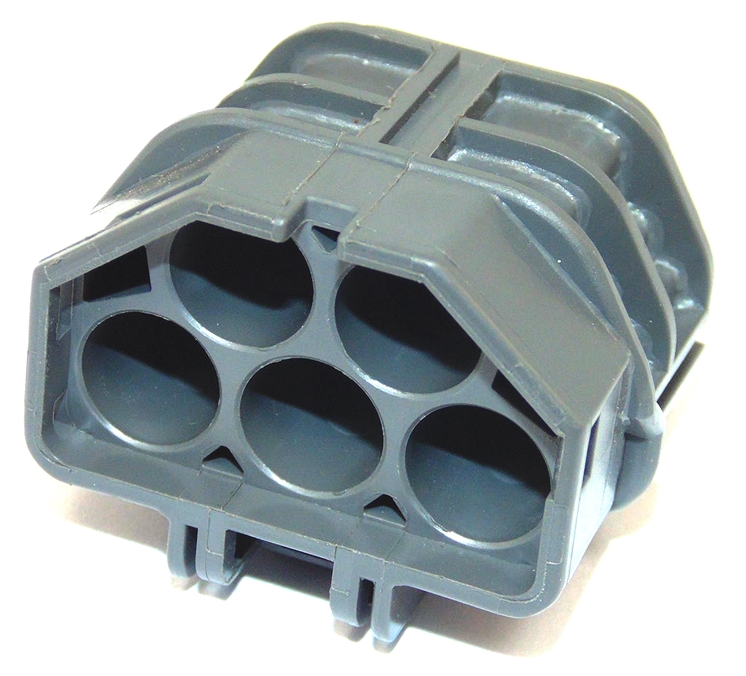

5 Way Yazaki WPC 250 Female Dark Grey

5 Way Yazaki WPC 250 Female Dark Grey
Zoom  Zoom
 5 Way Yazaki WPC 250 Female Dark Grey5 Way Yazaki WPC 250 Female Dark Grey
Our Price:  £5.86(Exc. 20% VAT)
+

Model:  FE95-71236550-H
Part Number:  7123-6550
Brand:  Yazaki
Product Range:  WPC 250
Number of Positions:  5
Number of Rows:  2
Gender (terminal):  Female
Colour:  Dark Grey
Sealed/Unsealed:  Sealed
Longest Dimension (connector face):  30.7mm
Terminal Shape:  Receptical
Housing Material:  PBT
Tab Width:  6.0mm(250)

Availability:

87 in stock



Pricing

1-49 £5.86
50-99 £4.69
100-499 £4.10
500+ £2.93













Documents:  Drawing


.
