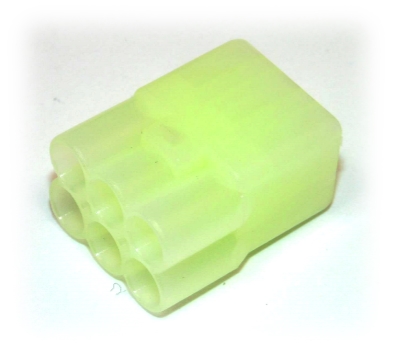

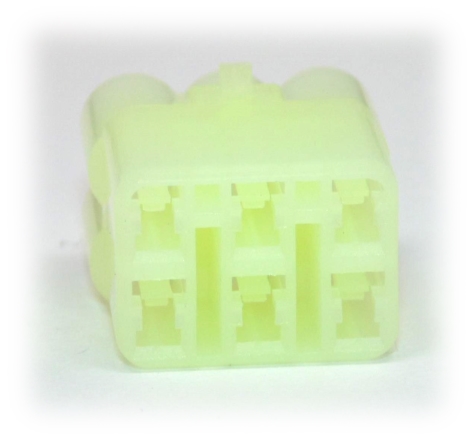

6 Way Sumitomo HM Series Female Connector Housing

6 Way Sumitomo HM Series Female Connector Housing
Zoom  Zoom
6 Way Sumitomo HM Series Female Connector Housing6 Way Sumitomo HM Series Female Connector Housing6 Way Sumitomo HM Series Female Connector Housing
Our Price:  £3.17(Exc. 20% VAT)
–+

Model:  BA86-61806181-H
Part Number:  6180-6181
Brand:  Sumitomo
Product Range:  HM Series
Number of Positions:  6
Number of Rows:  2
Gender (terminal):  Female
Colour:  Neutral
Sealed/Unsealed:  Sealed
Longest Dimension (connector face):  16.9mm
Terminal Shape:  Flat

Availability:

117 in stock

117 in stock

Share



Pricing
1-9 £3.17
10-49 £2.85
50-99 £2.22
100+ £1.90













Documents:  Drawing

.

Related Products
Sumitomo 090(2.3mm) Female Contact 0.3-1.25mm²

Sumitomo 090(2.3mm) Female Contact 0.3-1.25mm²£0.20

Brand:  Sumitomo
Product Range:  090(2.3mm) HW,MT,HM
Wire Size:  0.3-1.25mm²
Gender:  Female
Wire Seal Sumitomo 090(2.3mm) Black 0.3-1.25mm²

Wire Seal Sumitomo 090(2.3mm) Black 0.3-1.25mm²£0.13

Brand:  Sumitomo
Wire Size:  0.3-1.25mm²
Maximum Cavity Diameter:  5.6mm
Product Range:  MT/HW/HM Series
Dummy Seal Sumitomo 090(2.3mm) Black MT/HW/HM Series

Dummy Seal Sumitomo 090(2.3mm) Black MT/HW/HM Series£0.37

Brand:  Sumitomo
Wire Size:
Maximum Cavity Diameter:  5.6mm
Product Range:  MT/HW/HM Series

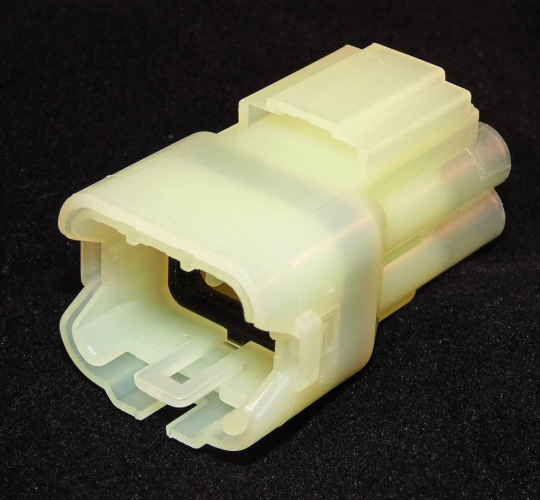

6 Way Sumitomo HM Series Male Connector Housing
