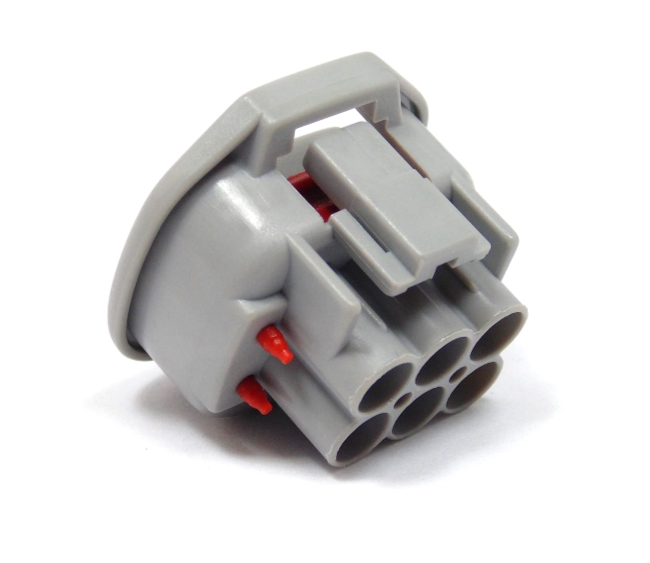

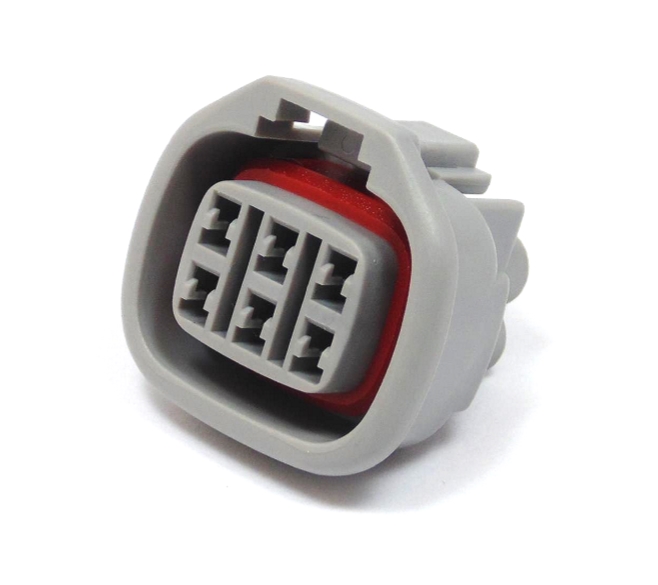

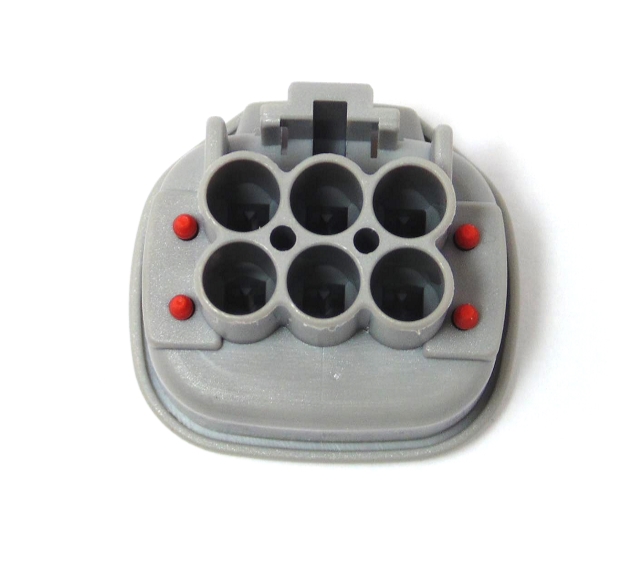

6 Way Sumitomo MT Series Connector Grey

6 Way Sumitomo MT Series Connector Grey
Zoom  Zoom
6 Way Sumitomo MT Series Connector Grey6 Way Sumitomo MT Series Connector Grey6 Way Sumitomo MT Series Connector Grey
Our Price:  £4.21(Exc. 20% VAT)
–+

Model:  CA04-61890029-H
Part Number:  6189-0029
Brand:  Sumitomo
Product Range:  MT Series
Number of Positions:  6
Number of Rows:  2
Gender (terminal):  Female
Colour:  Grey
Sealed/Unsealed:  Sealed
Longest Dimension (connector face):  31.1mm
Terminal Shape:  Flat

Availability:

72 in stock
Share



Pricing
1-9 £4.21
10-49 £3.79
50-99 £2.95
100+ £2.53













Documents:  Drawing

.
