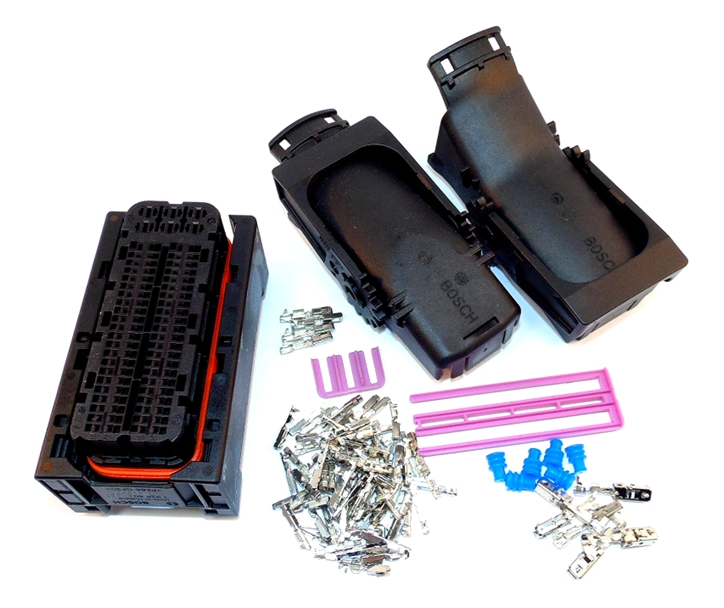

94 Way Connector Kit for Injection Power Stage HPI 5

Model:  FS82-D26120535301-K
Part Number:  D261.205.353-01
Brand:  Bosch
Product Range:  154P-V EMS
Number of Positions:  94
Gender (terminal):  Female
Colour:  Black
Sealed/Unsealed:  Sealed

Availability:

No stock

Included in the price:

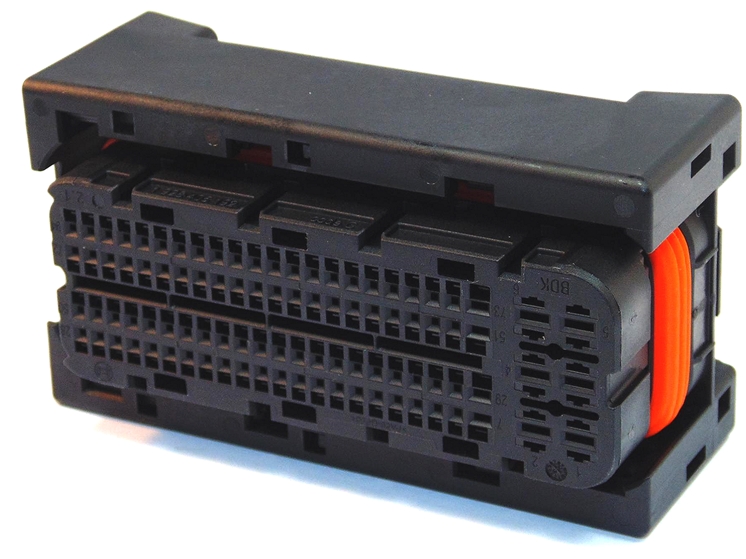

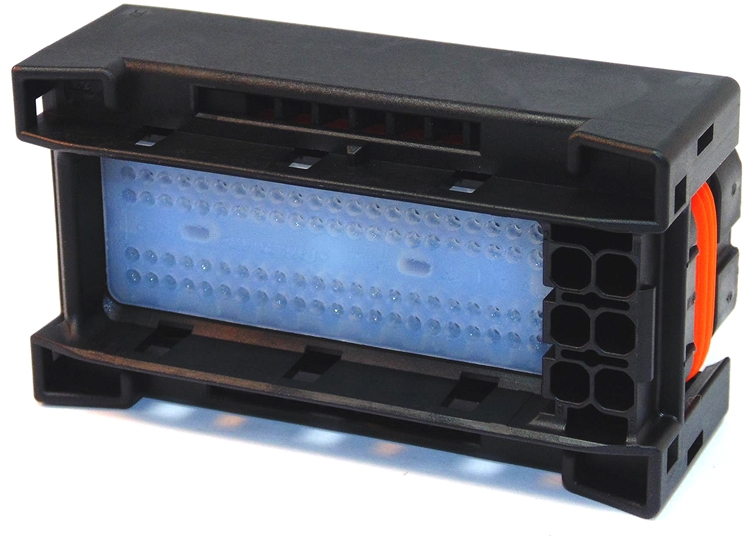

	Bosch Female 154P-V EMS Contact Housing 94 Way Code C 0.6/1.5/2mm

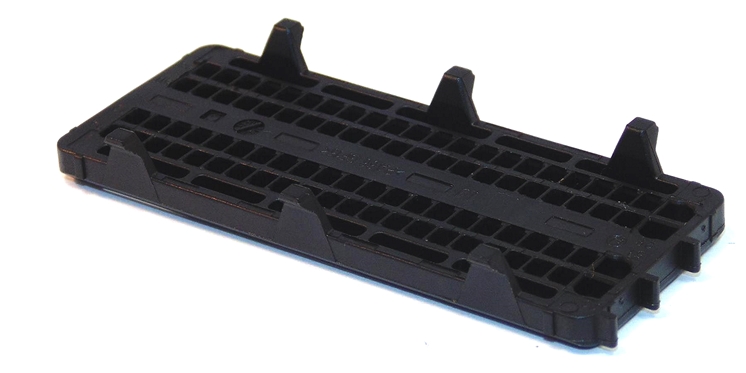

	Bosch 154P-V EMS Holding Plate 94 Way 88 open cavities

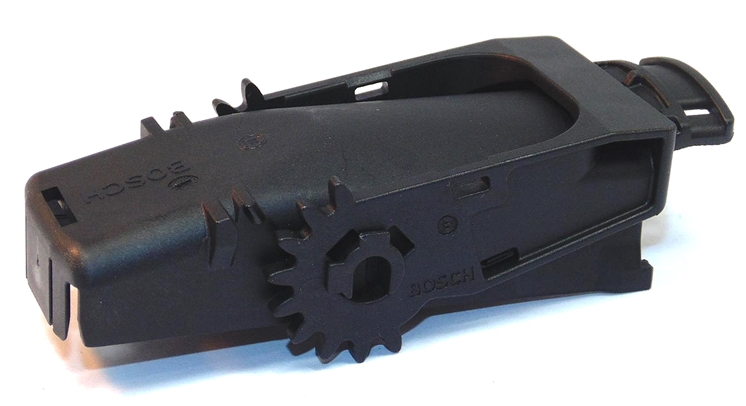

	Bosch 154P-V EMS Cover 94 Way Exit left

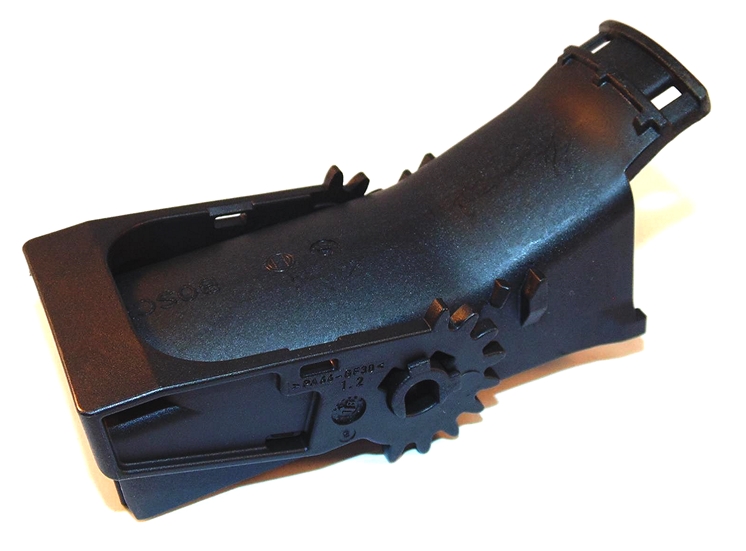

	Bosch 154P-V EMS Cover 94 Way Exit Right
	Bosch 154P-F EMS Secondary Locking 94 Way Signal
	Bosch BDK 2.8 Female Terminal 0.5-1.0mm² Qty:  6
	Bosch 196P EMS Secondary Locking 91 Way Power
	TE MQS 1.5 Terminal Female 0.75-1.5mm² Qty:  4
	Wire Seal Bosch BDK/BSK 2.8 Blue 0.5-1mm² Qty:  6

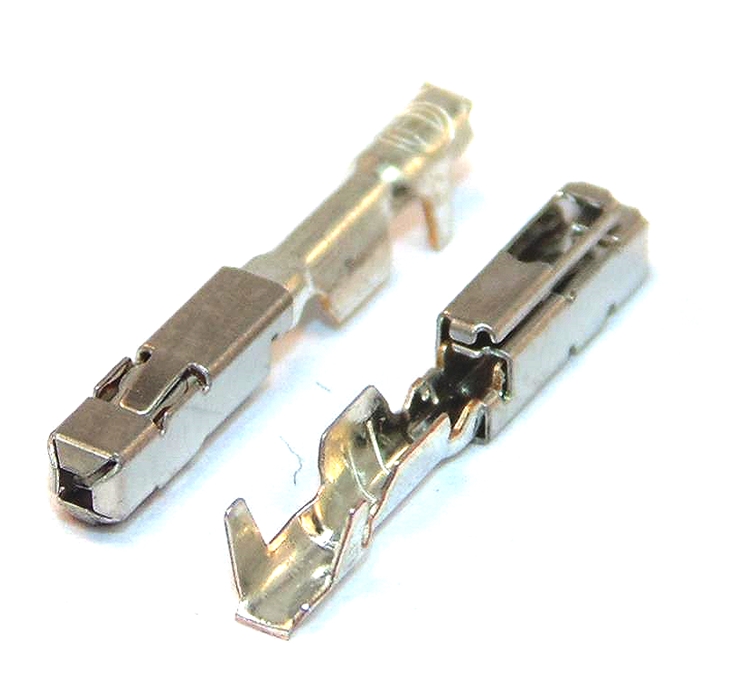

	Bosch BCB 0.6 Terminal Female 0.35-0.5mm² Qty:  84

Documents:   Datasheet

                          Assembly
