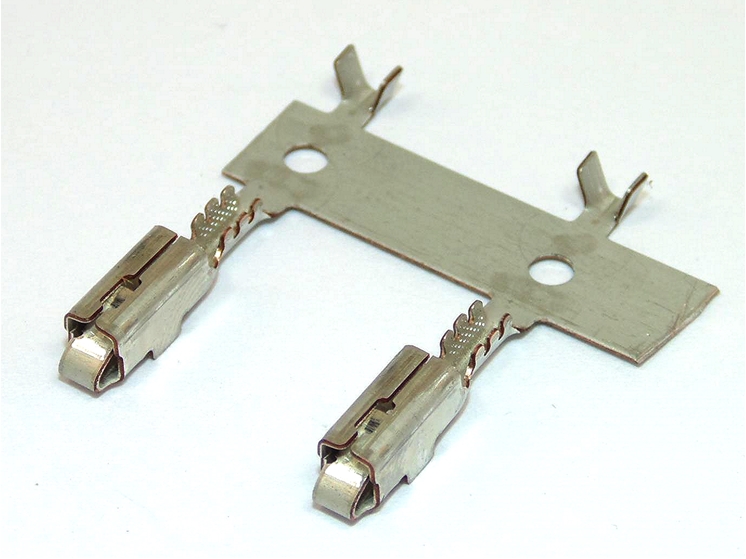

Delphi Metri-Pack 280 Female 0.35-0.5mm²

Model:  FI57-12110644-T
Part Number:  12110644
Brand:  Delphi (Aptiv)
Product Range:  Metri-Pack 280
Gender:  Female
Wire Size (min):  0.35mm²
Wire Size (max):  0.50mm²
Contact Material:  Beryllium Copper
Contact Plating:  Tin
Termination Method:  Crimp
Terminal Shape:  Receptical
Current Rating:  30A
Maximum Operating Temperature:  125⁰C
Minimum Operating Temperature:  -40⁰C
Wire Insulation Diameter:  1.47-2.19mm

Documents:  Drawing
