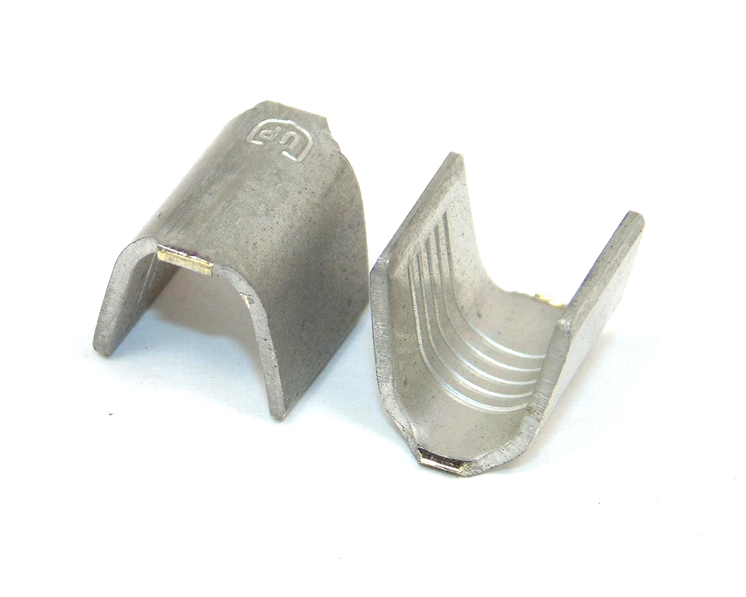

ESCUBEDO End Crimping Splice 9mm, 6-10mm² 10-8awg

Model:  FA87-510602-T
Part Number:  5106.02
Brand:  ESCUBEDO
Gender:  Female
Wire Size (min):  6mm²
Wire Size (max):  10mm²
Wire Size (awg):  10-8 awg
Contact Material:  Brass
Contact Plating:  Tin
Termination Method:  Crimp
Terminal Shape:  Splice
Maximum Operating Temperature:  120⁰C

Documents:  Drawing
