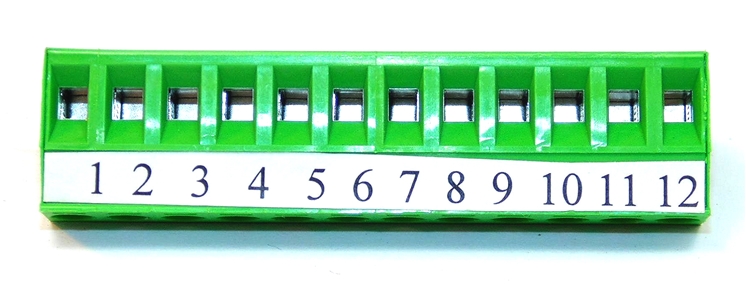

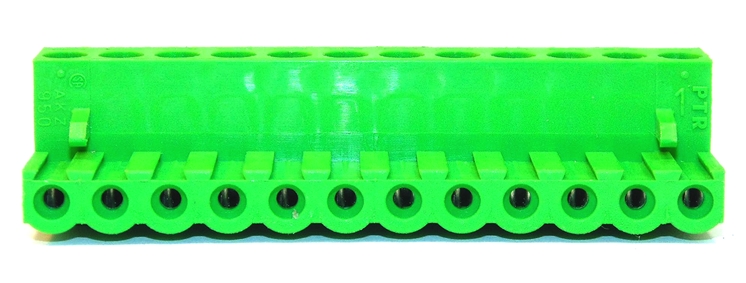

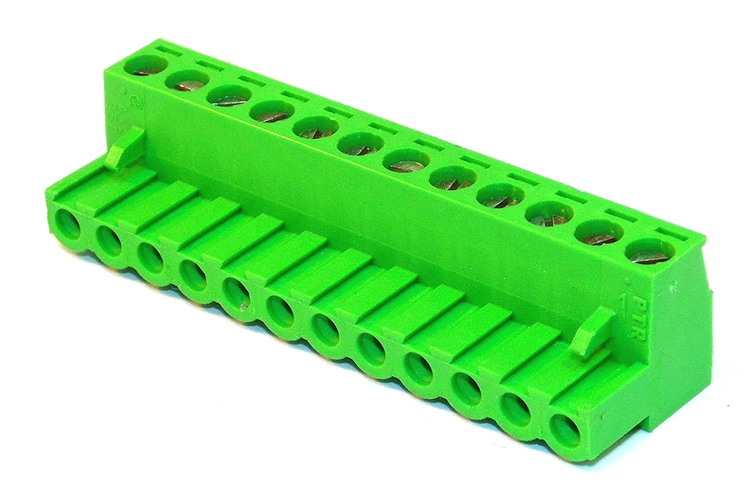

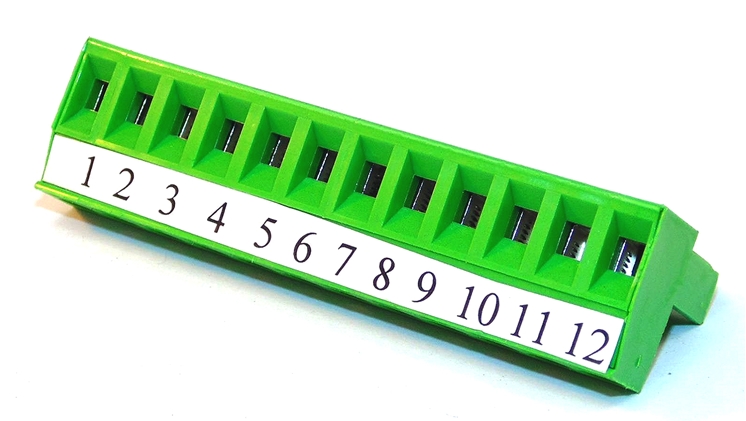

Hartmann 12 Way Rising-Cage-Clamp Green

Hartmann 12 Way Rising-Cage-Clamp Green
Zoom  Zoom
Hartmann 12 Way Rising-Cage-Clamp GreenHartmann 12 Way Rising-Cage-Clamp GreenHartmann 12 Way Rising-Cage-Clamp GreenHartmann 12 Way Rising-Cage-Clamp Green
Our Price:  £2.73(Exc. 20% VAT)
+

Model:  FM30-BU9512-H
Part Number:  BU9512
Brand:  Hartmann
Product Range  BU 95
Number of Positions  12
Number of Rows  1
Colour  Green
Sealed/Unsealed  Unsealed
Longest Dimension (connector face)  61.22mm
Stud Size  M3
Wire Size (min)  0.5mm²
Wire Size (max)  2.5mm²
Housing Material  PA 6.6
Maximum Operating Temperature  105⁰C
Minimum Operating Temperature  -30⁰C
Voltage Rating  250V

Availability

81 in stock

81 in stock



Documents:  Drawing


.
