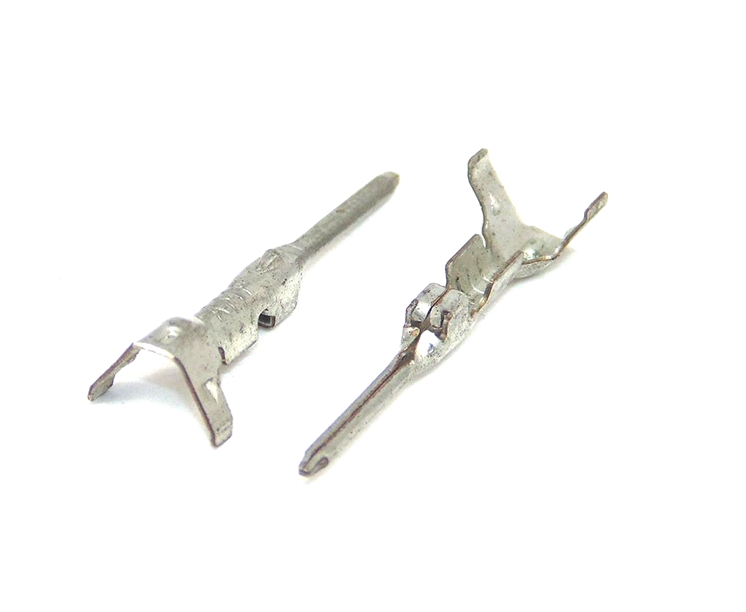

TE Connectivity, 040 Multilock, Male, Contact, 0.2-0.5mm²

Model:  FA33-3451641-T
Part Number:  345164-1
Brand:  TE Connectivity
Product Range  Multilock
Gender  Male
Wire Size (min)  0.2mm²
Wire Size (max)  0.5mm²
Wire Size (awg)  20-24awg
Contact Material  Brass
Contact Plating  Tin
Termination Method  Crimp
Terminal Shape:  Pin
Current Rating  7A
Tab Width  1mm(040)

Availability

3,242 in stock

Documents:  Drawing
