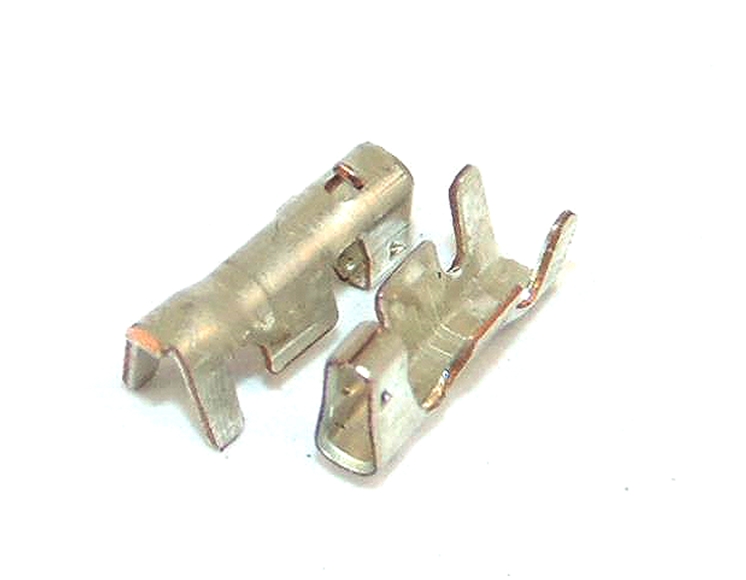

TE Connectivity AMP Mini CT 1.5mm Female 28-24 Awg

Model:  FH75-3539071-T
Part Number:  353907-1
Brand:  TE Connectivity
Product Range  Mini CT
Gender  Female
Wire Size (min)  0.08mm²
Wire Size (max)  0.2mm²
Wire Size (awg)  28-24 Awg
Contact Material  Bronze
Contact Plating  Tin
Termination Method  Crimp
Terminal Shape:  Socket
Current Rating  2A
Maximum Operating Temperature  105⁰C
Minimum Operating Temperature  -30⁰C
Wire Insulation Diameter  0.85-1.05mm
Tab Width  1.5mm

Availability

10 in stock

Documents:  Drawing
