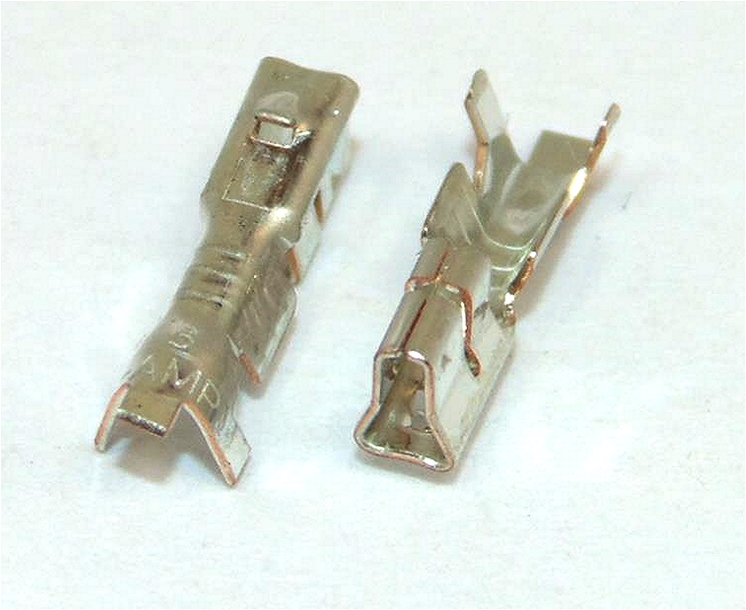

TE Connectivity AMP Signal Double Lock 2.5mm Female 22-20 Awg

Model:  FH71-9176831-T
Part Number:  917683-1
Brand:  TE Connectivity
Product Range  Signal Double Lock
Gender  Female
Wire Size (min)  0.3mm²
Wire Size (max)  0.53mm²
Wire Size (awg)  22-20 Awg
Contact Material  Bronze
Contact Plating  Tin
Termination Method  Crimp
Terminal Shape:  Socket
Current Rating  3A
Maximum Operating Temperature  105⁰C
Minimum Operating Temperature  -30⁰C
Wire Insulation Diameter  1.4-1.8mm
Tab Width  2.5mm

Availability

10 in stock

Documents:  Drawing
