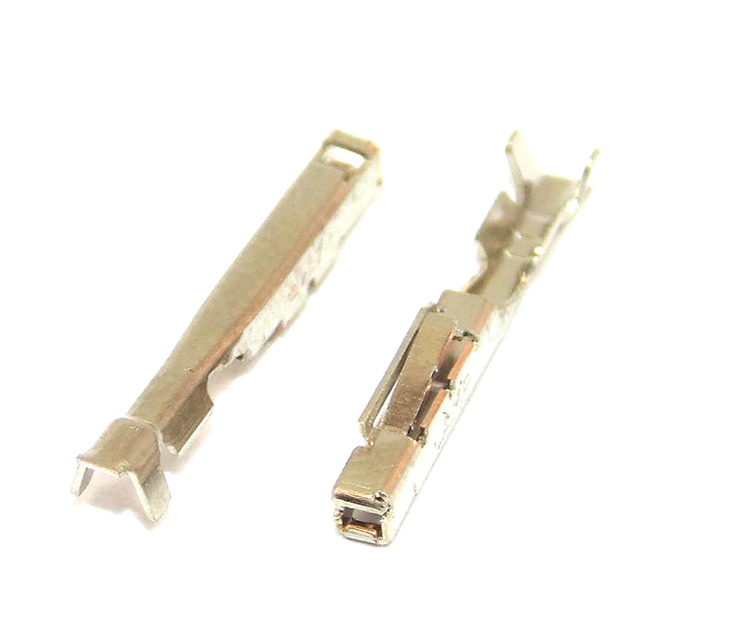

TE Connectivity Dynamic 2000 Series Female 28-24Awg

Model:  FH51-13181061-T
Part Number:  1318106-1
Brand:  TE Connectivity
Product Range:  Dynamic 2000
Gender:  Female
Wire Size (min):  0.08mm²
Wire Size (max):  0.24mm²
Wire Size (awg):  28-24 Awg
Contact Material:  Copper Alloy
Contact Plating:  Gold
Termination Method:  Crimp
Terminal Shape:  Socket
Current Rating:  5A
Maximum Operating Temperature:  105⁰C
Minimum Operating Temperature:  -55⁰C
Wire Insulation Diameter:  0.88-1.5mm

Documents:  Drawing
