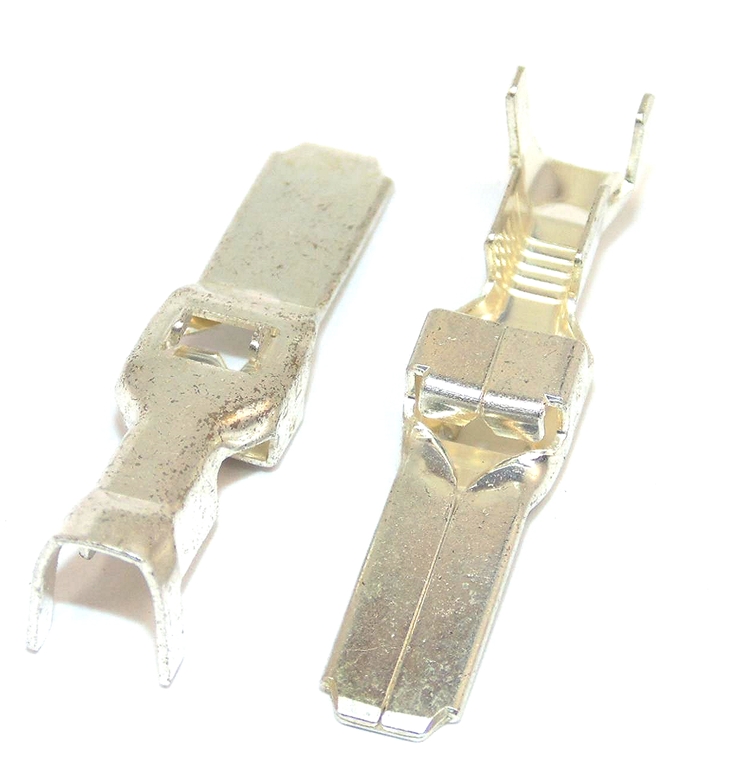

TE Connectivity Dynamic 5000 Series Male 12-10Awg

Model:  FH63-9178056-T
Part Number:  917805-6
Brand:  TE Connectivity
Product Range:  Dynamic 5000
Gender:  Male
Wire Size (min):  3.08mm²
Wire Size (max):  5.5mm²
Wire Size (awg):  12-10 Awg
Contact Material:  Copper Alloy
Contact Plating:  Silver
Termination Method:  Crimp
Terminal Shape:  Flat
Current Rating:  45 A
Maximum Operating Temperature:  105⁰C
Minimum Operating Temperature:  -55⁰C
Wire Insulation Diameter:  4.0-5.2mm

Availability:

20 in stock

Documents:  Drawing
