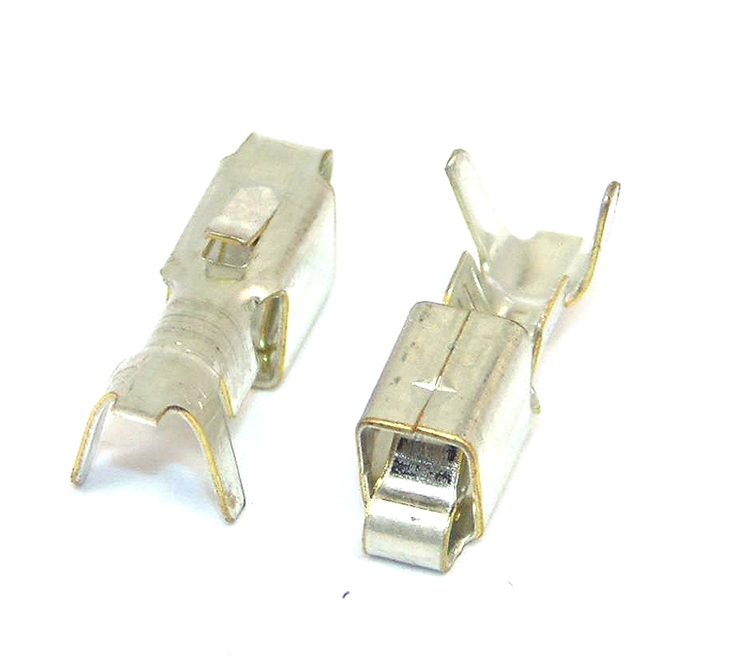

TE Connectivity Economy Power Female 22-18 AWG

Model:  FH43-11237212-T
Part Number:  1123721-2
Brand:  TE Connectivity
Product Range  Economy Power
Gender  Female
Wire Size (min)  0.33mm²
Wire Size (max)  0.82mm²
Wire Size (awg)  22-18 awg
Contact Material  Brass
Contact Plating  Tin
Termination Method  Crimp
Terminal Shape:  Socket
Current Rating  8A
Maximum Operating Temperature  105⁰C
Minimum Operating Temperature  -25⁰C
Wire Insulation Diameter  1.7-3.0mm

Availability

209 in stock

Documents:  Drawing
