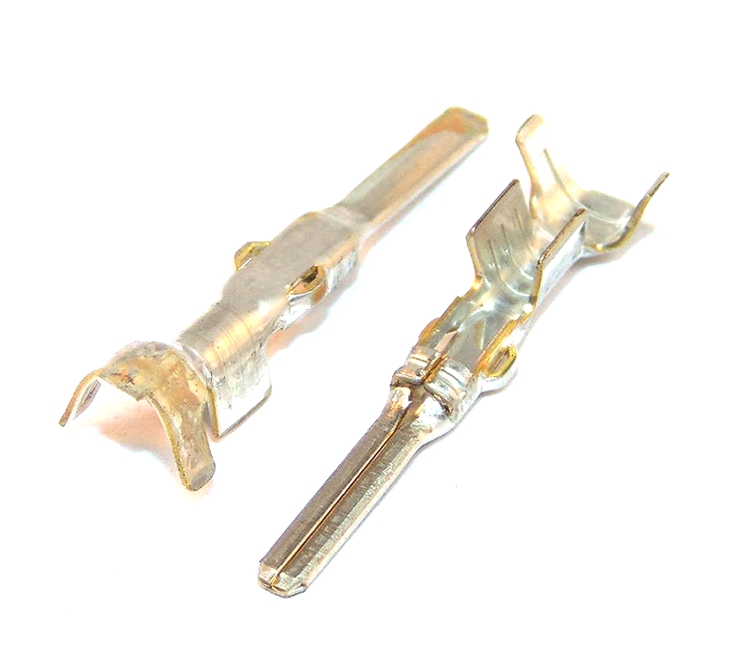

TE Connectivity Econoseal J MK2 1.8mm (070) 20-16 Awg Male

Model:  FQ17-1716611-T
Part Number:  171661-1
Brand:  TE Connectivity
Product Range  Econoseal-J Mark II
Gender  Male
Sealed/Unsealed  Sealed
Wire Size (min)  0.5mm²
Wire Size (max)  1.25mm²
Wire Size (awg)  20-16 Awg
Contact Material  Tin
Contact Plating  Tin
Termination Method  Crimp
Terminal Shape:  Pin
Current Rating  10A
Maximum Operating Temperature  105⁰C
Minimum Operating Temperature  -30⁰C
Tab Width  1.8mm(070)

Availability

3,000 in stock

Documents:   Drawing
