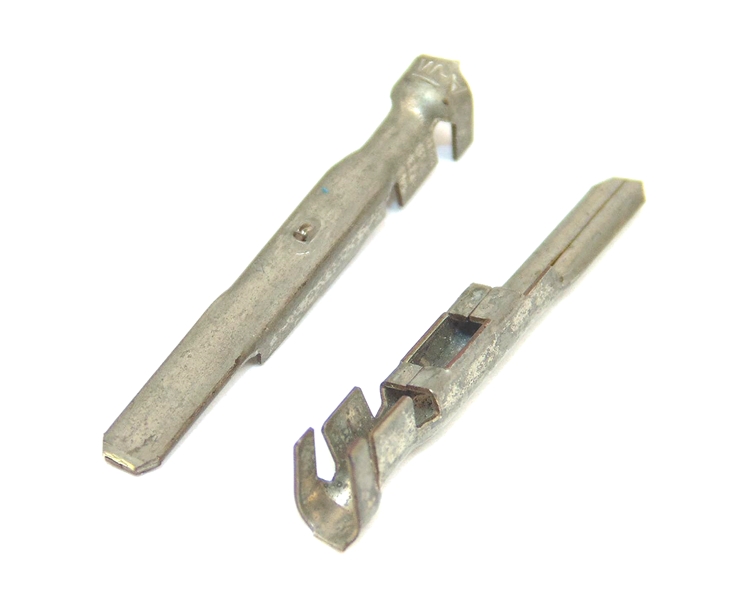

TE Connectivity, AMP Mark II, Male, Contact,0.5-2.0mm2

Model:  FA10-1727771-T
Part Number:  172777-1
Brand:  TE Connectivity
Product Range  Mark II
Gender  Male
Wire Size (min)  0.5mm²
Wire Size (max)  2.0mm²
Wire Size (awg)  20-14awg
Contact Material  Brass
Contact Plating  Tin
Termination Method  Crimp
Terminal Shape:  Pin
Current Rating  24A
Maximum Operating Temperature  105⁰C
Minimum Operating Temperature  -30⁰C
Tab Width  3.0mm(118)

Availability

8,680 in stock

Documents:  Drawing
