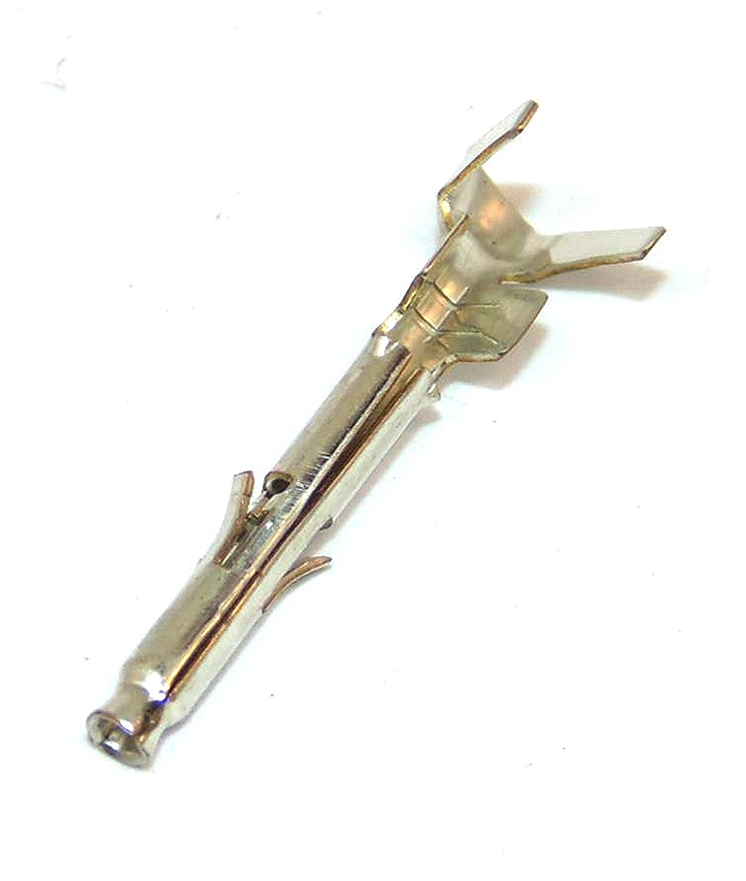

TE Connectivity Mate-N-Lok Female 20-16 Awg

Model:  FH78-1716371-T
Part Number:  171637-1
Brand:  TE Connectivity
Product Range:  Mate-N-Lok
Gender:  Female
Wire Size (min):  0.5mm²
Wire Size (max):  1.3mm²
Wire Size (awg):  20-16 Awg
Contact Material:  Brass
Contact Plating:  Tin
Termination Method:  Crimp
Terminal Shape:  Socket
Current Rating:  7A
Maximum Operating Temperature:  105⁰C
Minimum Operating Temperature:  -20⁰C
Wire Insulation Diameter:  2-3.2mm

Availability:

No stock, discontinued

Documents:  Drawing
