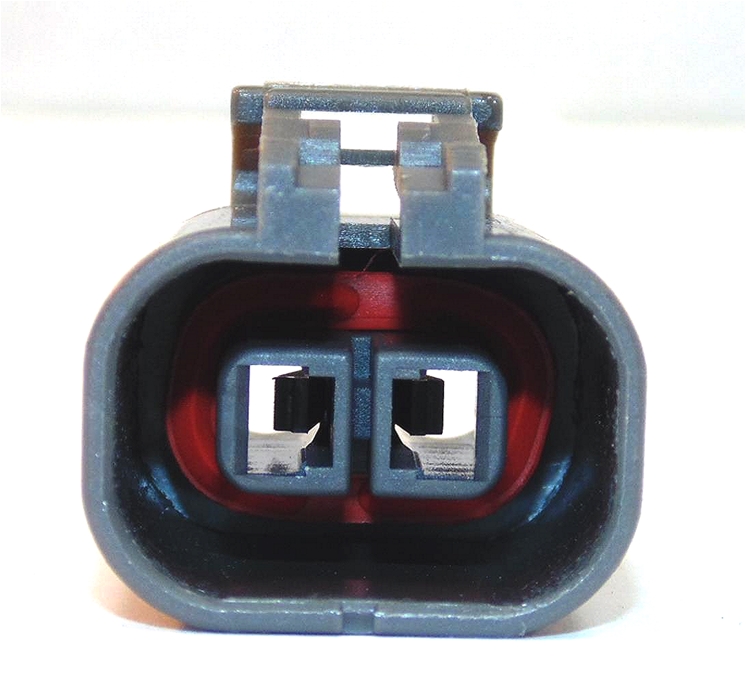

Yazaki 2 Way 58 Connectors W Type Female 2.8mm

Yazaki 2 Way 58 Connectors W Type Female 2.8mm
Zoom  Zoom
Yazaki 2 Way 58 Connectors W Type Female 2.8mmYazaki 2 Way 58 Connectors W Type Female 2.8mmYazaki 2 Way 58 Connectors W Type Female 2.8mm
Our Price:  £2.98(Exc. 20% VAT)
+

Model:  FO27-72231824-H
Part Number:  7223-1824
Brand:  Yazaki
Product Range:  58 Connectors
Number of Positions:  2
Gender (terminal):  Female
Colour:  Grey
Sealed/Unsealed:  Sealed
Longest Dimension (connector face):  23.6mm
Terminal Shape:  Socket
Housing Material:  Nylon 66
Current Rating:  10A
Maximum Operating Temperature:  100⁰C
Minimum Operating Temperature:  -40⁰C
Tab Width:  2.8mm(110)

Availability:

63 in stock

Pricing

1-9

£2.98

10-49 £2.38
50-99 £2.09
100+ £1.49














Documents:   Datasheet


Mating Connector 7122-1824-40
