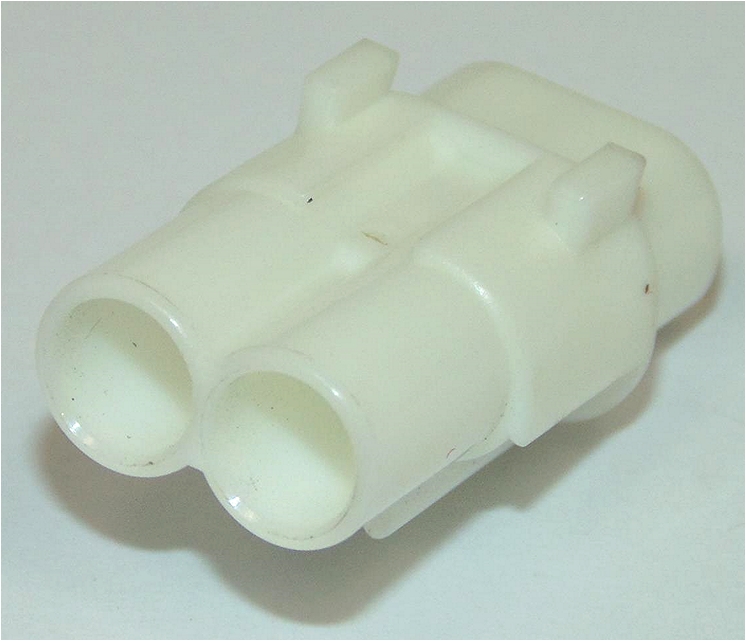

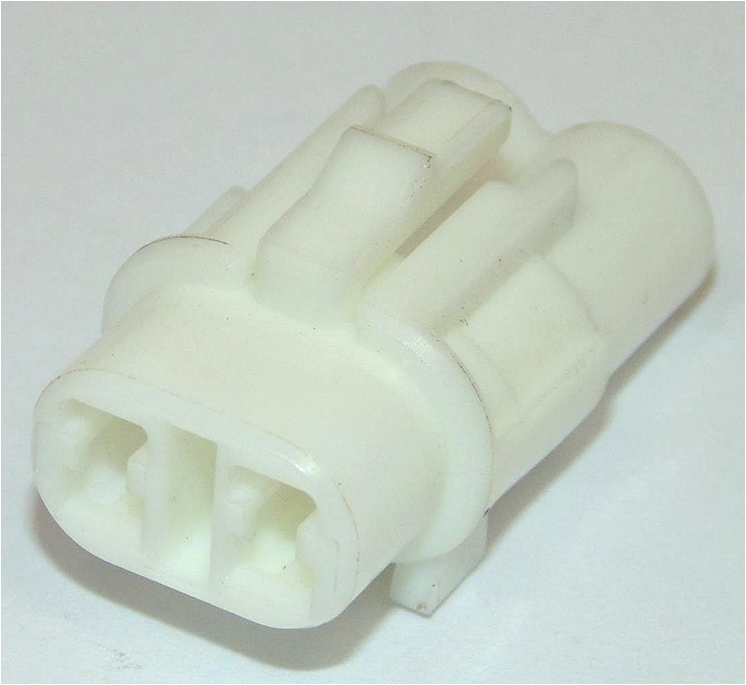

2 Way Sumitomo MT Sealed Series Female 2.3mm(090) White

2 Way Sumitomo MT Sealed Series Female 2.3mm(090) White
Zoom  Zoom
 2 Way Sumitomo MT Sealed Series Female 2.3mm(090) White2 Way Sumitomo MT Sealed Series Female 2.3mm(090) White
Our Price:  £1.80(Exc. 20% VAT)
–+

Model:  FE80-61802321-H
Part Number:  6180-2321
Brand:  Sumitomo
Product Range:  MT Sealed series
Number of Positions:  2
Number of Rows:  1
Gender (terminal):  Female
Colour:  White
Sealed/Unsealed:  Sealed
Longest Dimension (connector face):  11.7mm
Terminal Shape:  Receptical
Housing Material:  PBT
Tab Width:  2.3mm(090)

Availability:

322 in stock
Share



Pricing
1-9 £1.80
10-49 £1.62
50-99 £1.44
100+ £1.35













Documents:  Drawing

.
