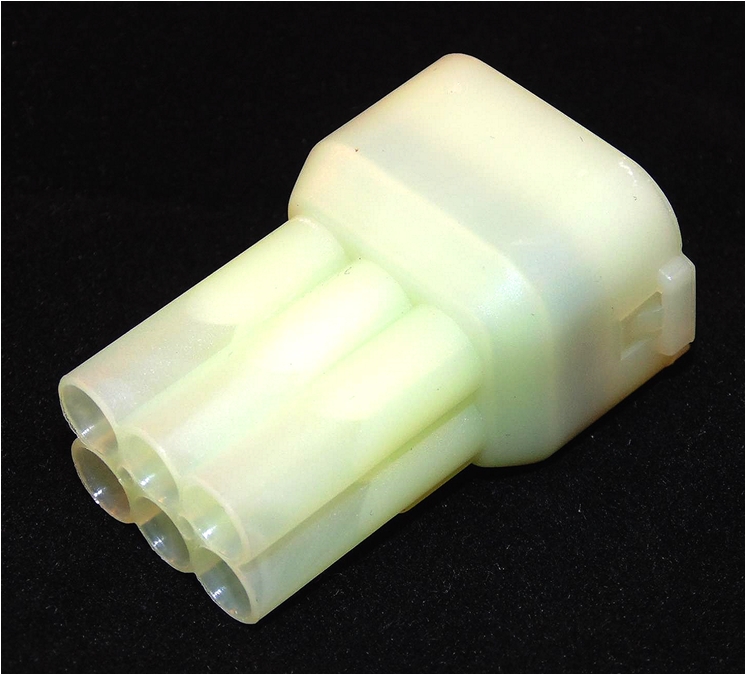

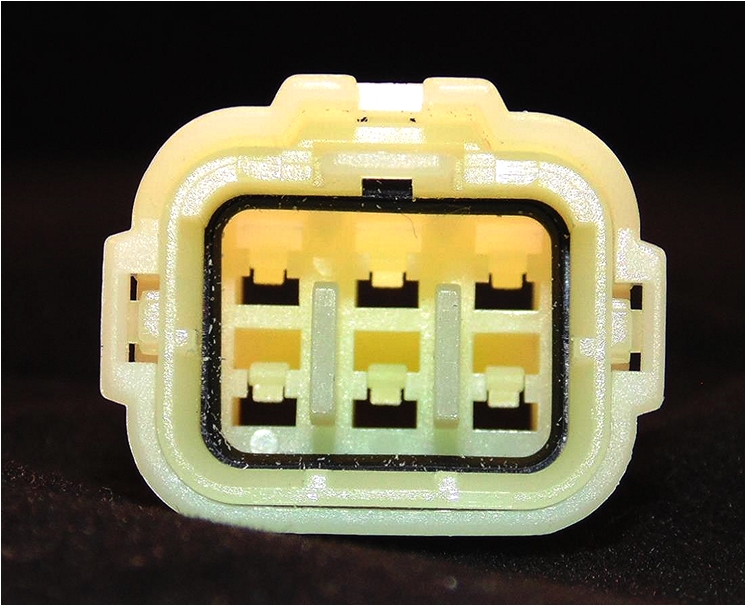

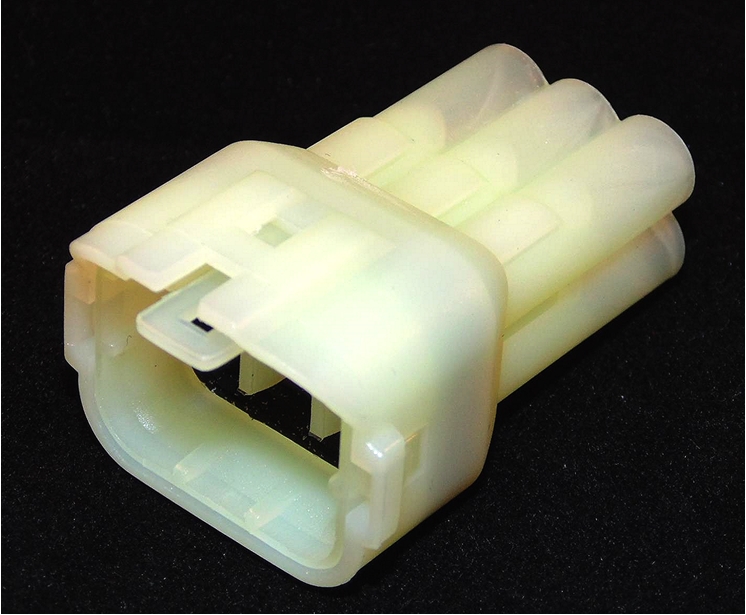

6 Way Sumitomo MT Series Male 2.3mm(090) Natural

6 Way Sumitomo MT Series Male 2.3mm(090) Natural
Zoom  Zoom
6 Way Sumitomo MT Series Male 2.3mm(090) Natural6 Way Sumitomo MT Series Male 2.3mm(090) Natural6 Way Sumitomo MT Series Male 2.3mm(090) Natural
Our Price:  £2.48(Exc. 20% VAT)
+

Model:  FU76-61896171-H
Part Number:  6189-6171
Brand:  Sumitomo
Product Range:  MT series
Number of Positions:  6
Number of Rows:  2
Gender (terminal):  Male
Colour:  Natural
Sealed/Unsealed:  Sealed
Longest Dimension (connector face):  25.7mm
Terminal Shape:  Flat

Availability:

No stock

No stock



Pricing

1-99 £2.48
100-499 £1.98
500-999 £1.74
1000+ £1.24













Documents:  Drawing


.
