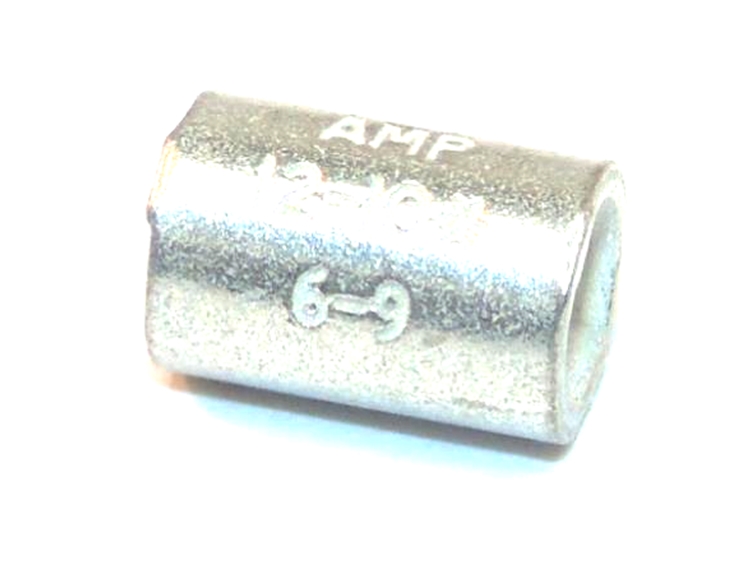

TE Connectivity Parallel Splice Non-Insulated 12-10 AWG 3-6mm²

Model:  FN50-34138-P
Part Number:  34138
Brand:  TE Connectivity
Wire Size (min)  3mm²
Wire Size (max)  6mm²
Wire Size (awg)  12-10awg
Type  Parallel
Contact Material  Copper
Contact Plating  Tin
Termination Method  Crimp
Insulation  Non-insulated
Maximum Operating Temperature  170⁰C
Length  8.71mm (0.343)
Barrel Type  Closed Barrel
Barrel Inside Diameter  3.28mm (0.129)
Material Thickness  1.07mm (0.042)
Outside Diameter  5.74mm (0.226)

Availability

85 in stock

Documents:   Drawing
