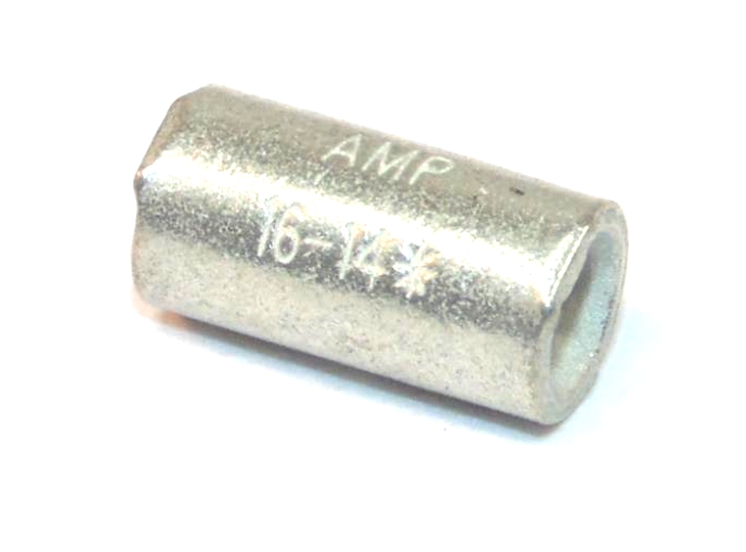

TE Connectivity Parallel Splice Non-Insulated 16-14 AWG 1.25-2mm▓

TE Connectivity Parallel Splice Non-Insulated 16-14 AWG 1.25-2mm▓
Zoom  Zoom
 TE Connectivity Parallel Splice Non-Insulated 16-14 AWG 1.25-2mm▓TE Connectivity Parallel Splice Non-Insulated 16-14 AWG 1.25-2mm▓
Our Price:  £0.14(Exc. 20% VAT)
+

Model:  FN49-34137-P
Part Number:  34137
Brand:  TE Connectivity
Wire Size (min):  1.25mm▓
Wire Size (max):  2mm▓
Wire Size (awg):  16-14awg
Type:  Parallel
Contact Material:  Copper
Contact Plating:  Tin
Termination Method:  Crimp
Insulation:  Non-insulated
Maximum Operating Temperature:  170⁰C
Length:  7.65mm (0.301)
Barrel Type:  Closed Barrel
Barrel Inside Diameter:  2.16mm (0.085)
Material Thickness:  0.84mm (0.033)
Outside Diameter:  4.19mm (0.165)

Availability:

23 in stock



Pricing

1-99 £0.14
100-499 £0.11
500-999 £0.10
1000+ £0.07













Documents:   Drawing




.
