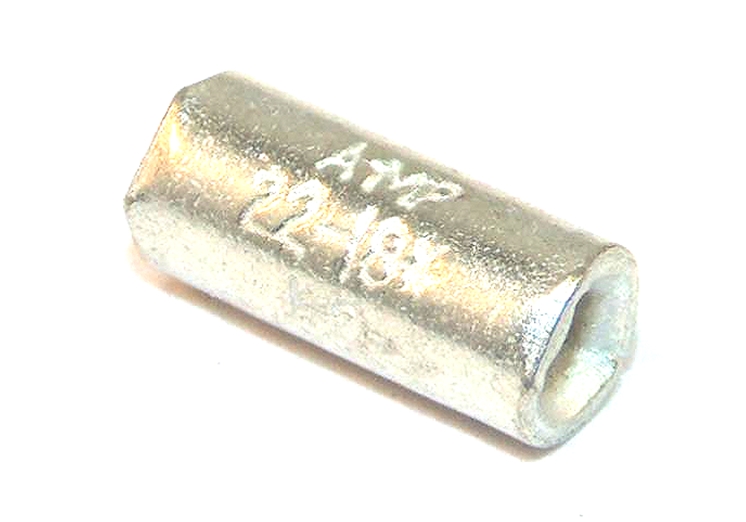

TE Connectivity Parallel Splice Non-Insulated 22-16 AWG 0.3-1.42mm▓

TE Connectivity Parallel Splice Non-Insulated 22-16 AWG 0.3-1.42mm▓
Zoom  Zoom
 TE Connectivity Parallel Splice Non-Insulated 22-16 AWG 0.3-1.42mm▓TE Connectivity Parallel Splice Non-Insulated 22-16 AWG 0.3-1.42mm▓
Our Price:  £0.13(Exc. 20% VAT)
+

Model:  FN48-34130-P
Part Number:  34130
Brand:  TE Connectivity
Wire Size (min):  0.3mm▓
Wire Size (max):  1.42mm▓
Wire Size (awg):  22-16awg
Type:  Parallel
Contact Material:  Copper
Contact Plating:  Tin
Termination Method:  Crimp
Insulation:  Non-insulated
Maximum Operating Temperature:  170⁰C
Length:  7.65mm (0.301)
Barrel Type:  Closed Barrel
Barrel Inside Diameter:  1.55mm (0.061)
Material Thickness:  0.84mm (0.033)
Outside Diameter:  3.58mm (0.141)

Availability:

86 in stock

Pricing

1-99

£0.13

100-499 £0.10
500-999 £0.09
1000+

£0.06













Documents:   Drawing




Special Offer:  Discounts of 20%, 30% and 50% are available when you order 100, 500 and 1,000 items or more of selected products.

.
