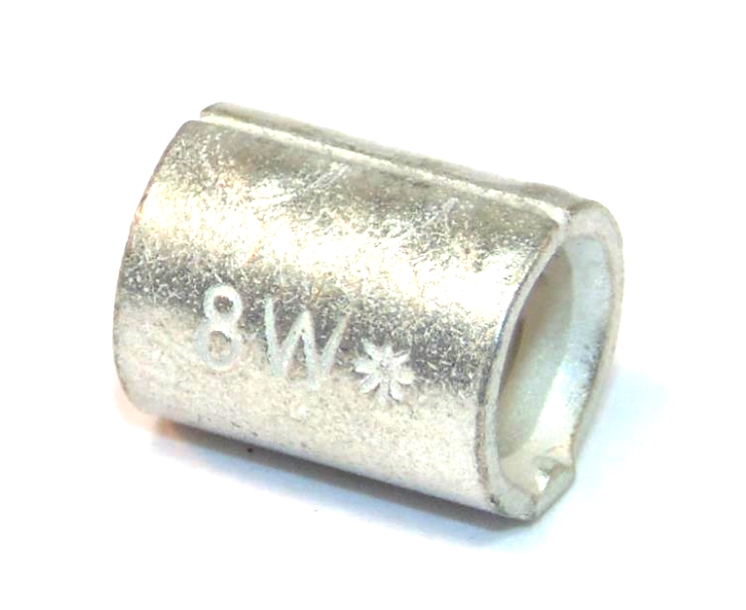

TE Connectivity Parallel Splice Non-Insulated 8 AWG 8mm²

Model:  FN51-34318-P
Part Number:  34318
Brand:  TE Connectivity
Wire Size (max):  8mm²
Wire Size (awg):  8awg
Type:  Parallel
Contact Material:  Copper
Contact Plating:  Tin
Termination Method:  Crimp
Insulation:  Non-insulated
Maximum Operating Temperature:  170⁰C
Length:  9.53mm (0.375)
Barrel Type:  Closed Barrel
Barrel Inside Diameter:  4.37mm (0.172)
Material Thickness:  1.3mm (0.051)
Outside Diameter:  7.52mm (0.296)

Availability:

232 in stock

Documents:   Drawing
