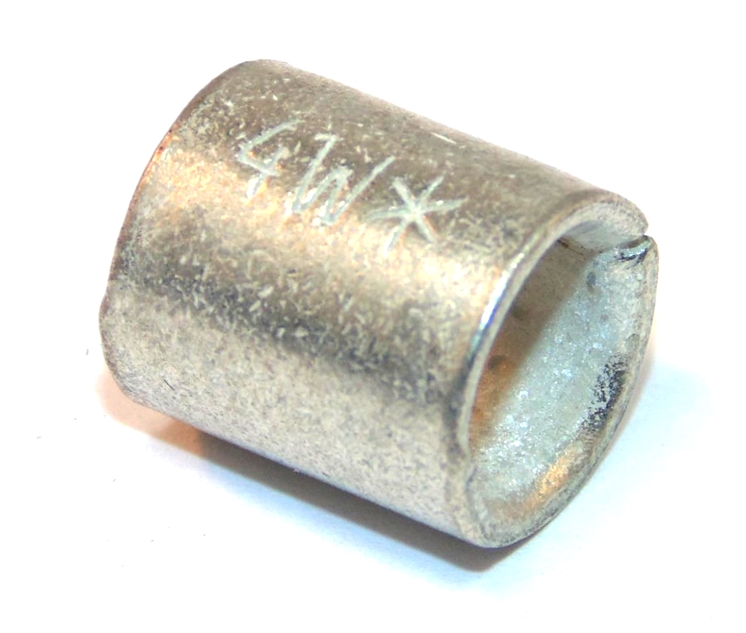

TE Connectivity Parallel Splice Non-Insulated 4 AWG 21mm²

Model:  FN53-34320-P
Part Number:  34320
Brand:  TE Connectivity
Wire Size (max)  21mm²
Wire Size (awg)  4awg
Type  Parallel
Contact Material  Copper
Contact Plating  Tin
Termination Method  Crimp
Insulation  Non-insulated
Maximum Operating Temperature  170⁰C
Length  13.49mm (0.531)
Barrel Type  Closed Barrel
Barrel Inside Diameter  7.52mm (0.296)
Material Thickness  1.85mm (0.073)
Outside Diameter  11.76mm (0.463)

Availability

44 in stock

Documents:   Drawing
